This model enables you to carry out a basic study of the operation of:
- a permanent-magnet synchronous motor (PMSM) (the most commonly used motor in EVs and hybrid vehicles),
- the motor control system (inverter).
Once you have identified the components of a synchronous motor and its control system, the suggested activities will gradually lead to a comprehensive analysis of a permanent magnet synchronous motor: PMSM.

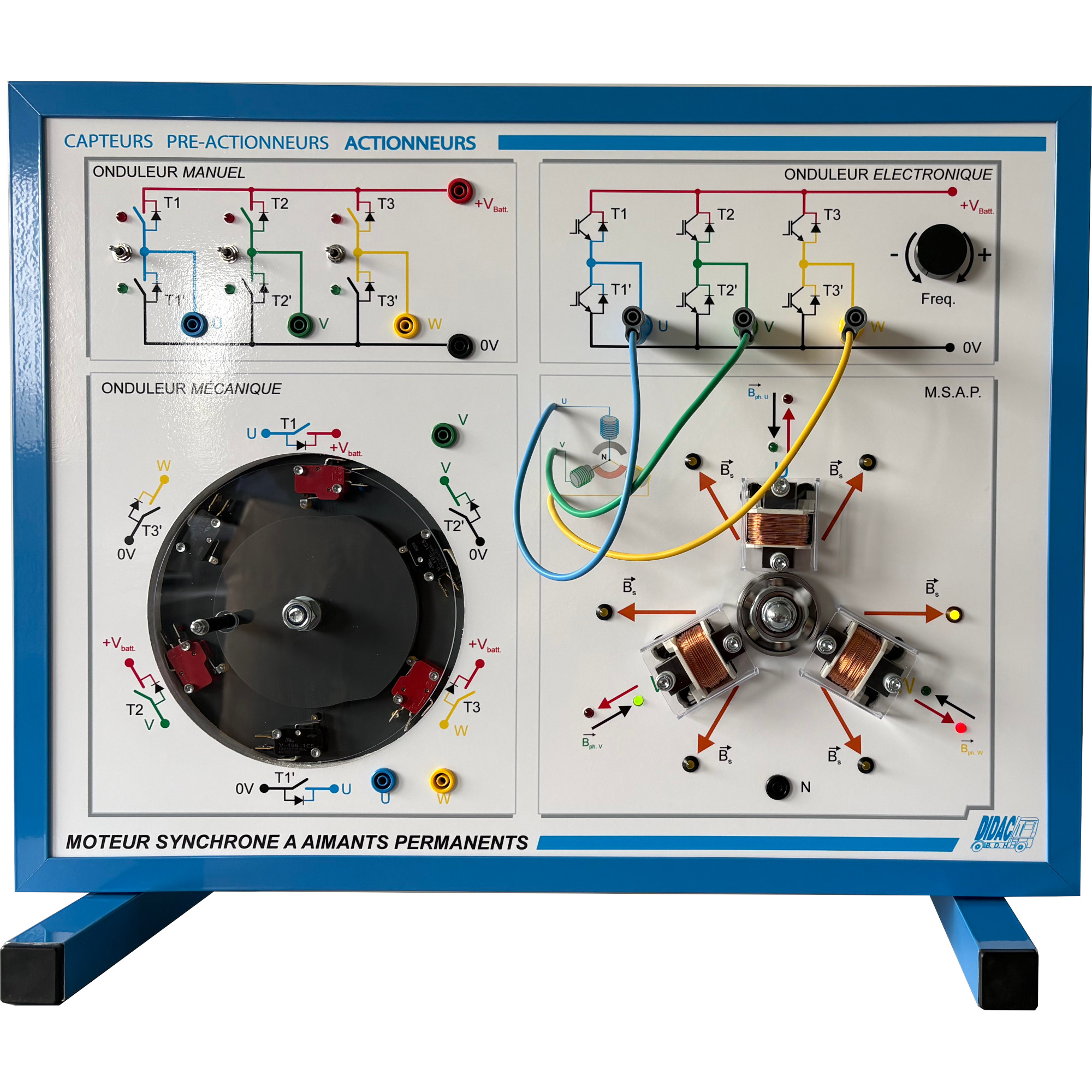

The console consists of four parts:
- the three-phase motor: permanent magnet rotor + the three phases
- a ‘static inverter with switches’
- a ‘dynamic inverter with microswitches’
- an electronic inverter.
Power supply: 24V 12A
Dimensions: L = 600 D = 250 H = 450 (mm)
Weight: 15 kg
Warranty: 1 year
