CAN BUS J1939
Ref. : ANA-BUS.CAN J1939

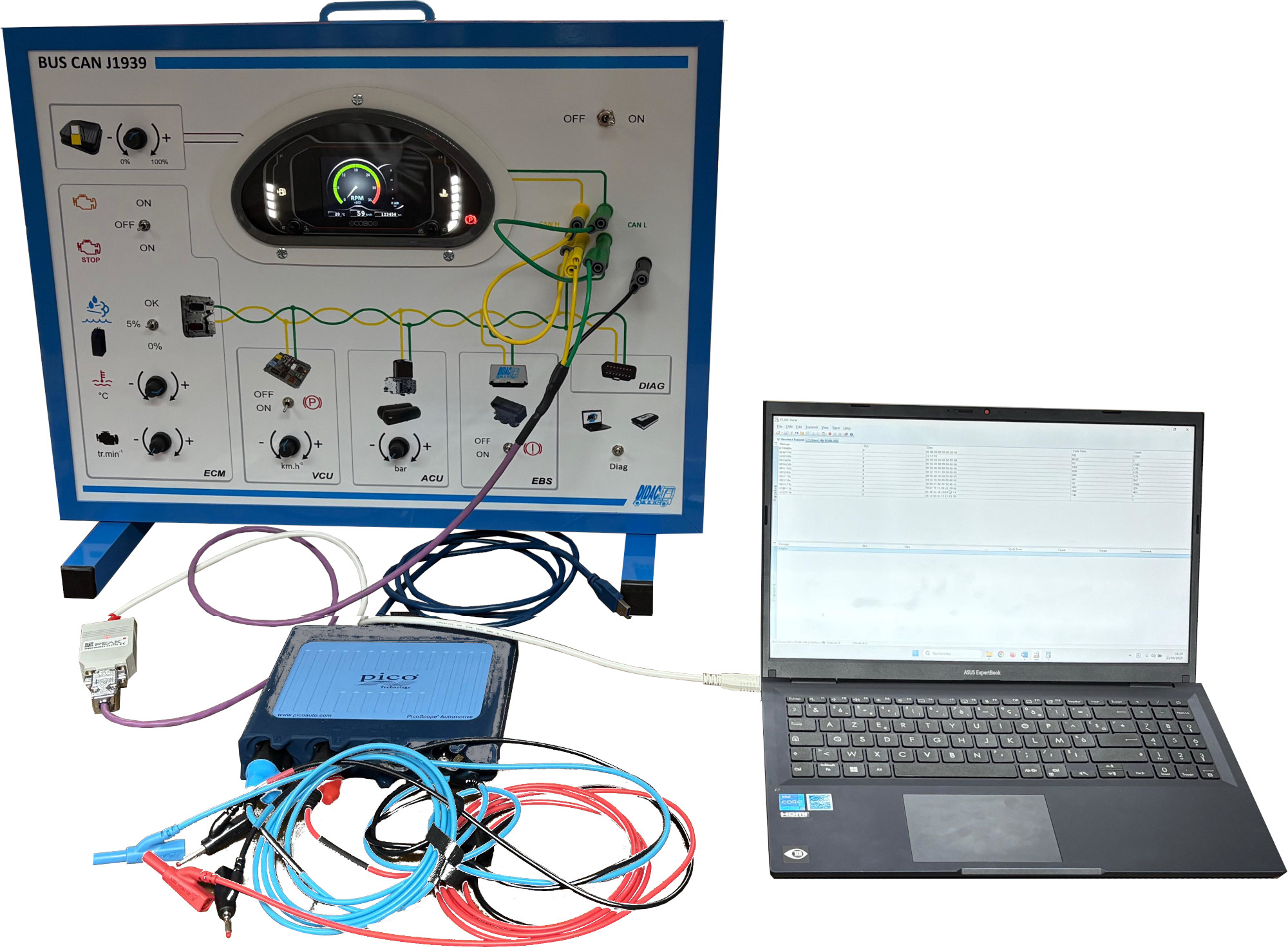

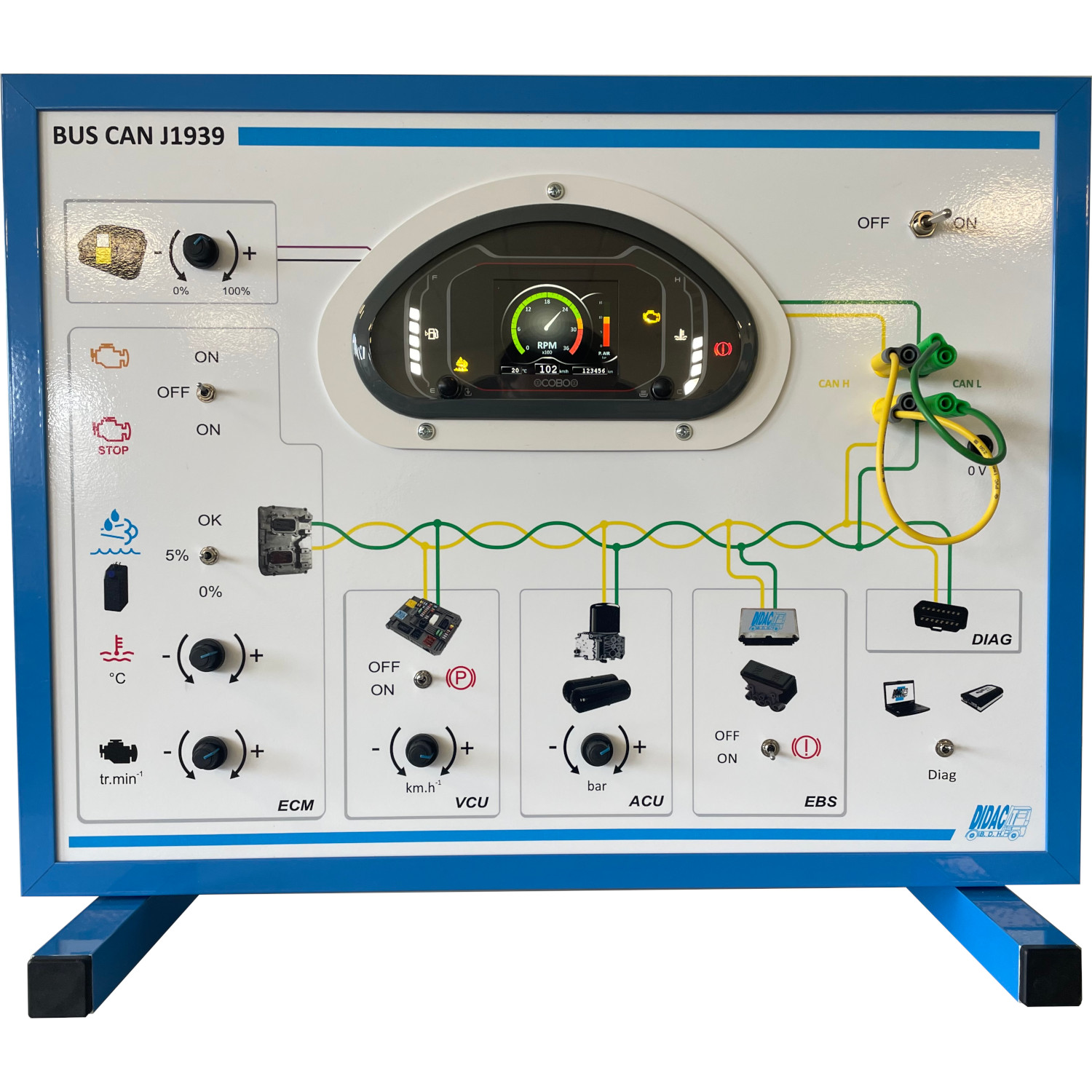

The model BUS CAN J1939 is a console comprising:

  • An Instrument panel IC05 (lap counter, speedometer, indicators, warning lights and matrix display).
  • A parameters configuration panel: traction mode, water temperature, warning STOP light, retarder handle position,speedometer, info parking brake et air-pressure
  • A power switch (similar as +APC) of receiver.
  • Two socket (яшер пкщгтв ), connected to the bus allowing to сonnect ananalyzer of weaves.
  • A block plug 220V with fuse integrated for the power supply.
  • A support with retainable resistance of 60Ω.
  • An electronic card allowing to generate frames in autonomous mode: orders user.
  • An adapter USB CAN.
  • A software of reception/transmission CAN.
  • An USB key including : trainer applications (file resources, file of use, Practical works: Trainer / student).

This didactical stand allows to to study next themes:
-Posting of the data, analog/digital conversion.
-Network multiplexed, CAN low speed, high speed, LIN
-Message notion “constructor”
-Decoding system / weaves analysis (CANALYSER).
-Networks diagnosis (multimeter, CANALYSER)

Product intended for:
- Training Centers
- Maintenance and repair schools
- Mechanical schools
- Higher education institutes

Dimensions:
L: 600 mm P: 345 mm H: 330 mm
Weight: 14 Kg
Power supply : 220 V 50 Hz
Warranty : 1 year
